Can I install a BLDC ceiling fan myself, or do I need an electrician?

Most homes can manage a straightforward one-fan, one-switch installation without hiring an electrician, since the wiring sequence is the same as any ceiling fan. If your ceiling point has shared circuits, a separate light and fan switch, or you're not confident working with live wiring, it's worth the cost of a professional install rather than guessing.

Do BLDC fans work with old-style mechanical wall regulators?

Generally no. Most BLDC ceiling fans are designed to be controlled by their own remote or app, not a wall-mounted rotary or step regulator, because the speed control happens electronically inside the fan itself. Check the specific model's control method before assuming your existing regulator will work with it.

Will a BLDC fan run during a power cut without an inverter?

No. A BLDC fan still needs an electricity supply to run, whether that's grid power or an inverter and battery. What changes is how efficiently it uses whatever backup power you do have, since its low, steady current draw means it drains inverter batteries far more slowly than a normal fan.

Why does my BLDC fan's remote stop working after a power cut?

This is almost always a pairing or battery issue rather than a fault caused by the outage itself. Start by replacing the remote batteries, then re-pair the remote to the receiver following the model's manual if that doesn't resolve it.

How often should a BLDC ceiling fan actually be serviced?

There's no fixed mechanical service interval the way an old induction fan sometimes needed for oiling. A wipe-down every four to six weeks and a screw-tightness check twice a year covers routine care. Beyond that, a BLDC fan generally only needs attention when something actually goes wrong, at which point it should go to an authorized service center rather than be opened at home. For a full breakdown of whether the higher upfront cost of a BLDC fan actually pays off over time, see Is a BLDC Fan Worth It? Honest Pros, Cons & Real Ownership Costs. And if you're still deciding which model and sweep size to buy in the first place, the Best BLDC Ceiling Fan in India: Complete Buying & Comparison Guide 2026 brings the full range together in one place.

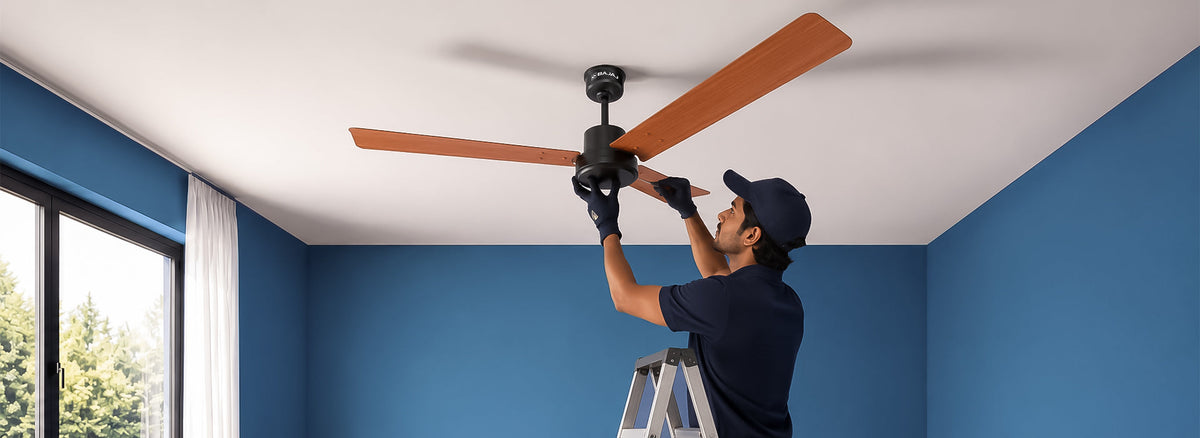

BLDC Ceiling Fan Installation, Inverter Compatibility & Maintenance Guide

A BLDC ceiling fan goes up on your ceiling almost the same way a normal fan does. Same bracket, same downrod, same wiring points. The one real difference is a small remote receiver module that has to be seated inside the canopy before you close it up. What actually changes is what happens after you switch the fan on. It runs on a wider voltage band, it barely touches your inverter battery during a power cut, and it needs a lot less hands-on upkeep because there's no capacitor and no carbon brushes to wear down.

This guide walks through the installation steps, what "inverter compatible" really means for a BLDC fan, how to fix the problems people actually run into, and what maintenance is worth your time versus what isn't.

Key Takeaways

Installation is the same six-step process as any ceiling fan, plus pairing the remote receiver. Most homes don't need an electrician unless the ceiling point itself needs rewiring.
A BLDC fan does not work with an old mechanical wall regulator. If your switchboard only has a rotary or step regulator, you'll be running the fan off its own remote instead.
Most "remote not working" or "fan won't start" complaints trace back to batteries, pairing, or a tripped breaker, not a motor fault.
Routine maintenance is lighter than a normal fan, but the driver circuit board is the new wear point to ask about when you check the warranty.

Installation Steps: Wiring, Canopy & Remote Receiver Module

Installing a BLDC ceiling fan follows the same six-step sequence as any ceiling fan installation: mount the bracket, assemble the downrod and motor, connect the wiring, fit the blades, seat the remote receiver in the canopy, then test. The only BLDC-specific step is making sure the receiver module sits correctly before you close the canopy, since most of these fans run on remote control only, with no physical regulator.

Before You Start

Cut power at the circuit breaker, not just the wall switch. A wall switch that only controls the light circuit is a common reason people get shocked mid-install.
Use a stable ladder, not a chair or stool balanced on furniture.
Have the fan's own installation manual open next to you. Wire colour conventions differ between manufacturers, so treat any colour reference below as a general guide, not a substitute for the manual.

Step-by-Step Installation

Turn off the mains supply at the breaker and confirm with a voltage tester that the ceiling point is dead.
Fix the mounting bracket to the ceiling hook or a properly anchored beam. This bracket carries the full weight of the fan, so a weak ceiling anchor is not something to work around.
Assemble the downrod to the motor unit and secure it with the safety pin or circlip provided. This pin is what stops the fan from dropping if a thread ever works loose.
Connect the wiring. Match the fan's supply wires to the ceiling point's live, neutral, and earth conductors, and cap every joint with a proper wire connector before taping it. Do not twist bare wires together and hope.
Fit the remote receiver module inside the canopy. This is the step people skip on a normal fan install but can't skip here, since it's how the fan will actually be controlled day to day.
Attach the blades to the motor assembly and check that each one sits at the same angle. Uneven blades are the single biggest cause of wobble and rattling later.
Close the canopy, restore power at the breaker, and test the fan across every speed using the remote before you consider the job done.

If your home has a separate wall switch for the fan and one for the light, or if the ceiling point is shared with another circuit, that's a reasonable point to bring in an electrician rather than improvise. It isn't a BLDC-specific complication, but the stakes of getting live wiring wrong don't change because the fan is a smarter one.

Does It Work on an Inverter? Voltage Range & Power-Cut Performance

Yes, a properly rated BLDC fan inverter compatible model is built to run on standard home inverters, and this is one of the more genuinely useful reasons people upgrade. Because a BLDC motor uses electronic commutation instead of an induction motor's windings, it draws a low, steady current with no restart surge. An induction fan can pull three to five times its normal running current for a moment when power comes back, and that spike is what drains an inverter battery fastest and can trip an undersized inverter altogether.

This is also why BLDC fans hold a steadier speed when grid voltage dips. Manufacturers commonly advertise operating ranges somewhere around 90V to 300V, though the exact figure is model-specific. A normal induction fan starts losing noticeable speed well before it hits the low end of that band.

What This Means in Practice

On the same inverter battery, a BLDC fan will typically run for a noticeably longer stretch than an induction fan, because it's drawing a fraction of the wattage at a stable current. The exact hours depend on your battery's amp-hour rating and your inverter's own efficiency, so treat any specific runtime figure you see online as an estimate rather than a promise for your setup.
Running several BLDC fans off one inverter circuit is realistic in a way it usually isn't with induction fans, since the combined load stays low.
If your area sees frequent voltage dips even without an outright power cut, a wide voltage range matters just as much as inverter compatibility. Ask specifically for the rated voltage band, not just "works on inverter," when you're comparing models.

Factor	Normal Induction Fan	BLDC Fan
Typical running wattage	70W to 80W at full speed	28W to 35W at full speed
Voltage tolerance	Noticeable speed loss below roughly 180V to 190V	Rated for a wider band, commonly cited as 90V to 300V
Regulator compatibility	Works with standard wall regulators	Usually remote or app controlled only, not wall-regulator compatible

One caution worth flagging here: none of these numbers should be quoted to a customer as Bajaj's own specification until someone checks them against the current product listing or datasheet. Wattage, voltage range, and warranty terms genuinely differ across models within the same brand.

Troubleshooting: Remote Not Working, Fan Not Starting, Unusual Noise

Most BLDC fan complaints fall into a handful of repeatable categories, and almost none of them mean the motor has actually failed. Working through the checks below in order will resolve the majority of cases without a service call.

Problem and Solution Reference

Problem	Most Likely Cause	What to Check First
Remote does nothing at all	Dead or low remote batteries, or the remote was never paired to this receiver	Replace batteries first. If that doesn't fix it, re-pair the remote following the manual's DIP switch or sync sequence
Fan doesn't restart after a power cut	Tripped breaker, loose wiring connection, or voltage below the fan's rated minimum	Check the breaker before anything else, then confirm the wiring at the canopy is still seated
Fan runs but only at one speed	Receiver fault or a wiring harness issue between the receiver and motor	Try every speed setting on the remote; if none of them change the output, this usually needs a service visit
Clicking or ticking sound	A loose blade screw, or debris caught between the blade and motor housing	Turn off power, check every blade screw is tight, and look for anything lodged near the motor
Humming or whooshing at high speed	Usually just aerodynamic noise from air moving across the blades, which is normal	Compare the sound at low versus high speed. A sound that scales with speed and disappears at low speed is typically not a fault
Visible wobble	Uneven blade angles, a loosely fixed mounting bracket, or a bent blade	Check blade balance and bracket screws before assuming the motor itself is the problem

If you've worked through the checks above and the fan still won't behave, that's the point to contact the manufacturer's service network rather than opening the motor housing yourself. BLDC motors have a sealed driver circuit board with no user-serviceable parts inside, and opening it usually voids the warranty.

Maintenance Checklist: What Actually Needs Doing (and What Doesn't)

A BLDC fan maintenance routine is lighter than what a normal induction fan asks for, mainly because there's no capacitor to fail and no carbon brushes to wear down over time. That doesn't mean it's maintenance-free. The electronics that replaced those mechanical parts have their own care needs, even if they're simpler ones.

What Actually Needs Doing

Wipe the blades every four to six weeks with a dry or barely damp cloth. Dust buildup on the leading edge of a blade is still the most common reason a fan starts sounding louder over time.
Check that every blade screw and bracket screw is still tight roughly every six months. Loose screws cause wobbles long before they cause anything more serious.
Keep the canopy and motor housing dry, especially in bathroom-adjacent rooms or during the monsoon. Moisture is a bigger long-term risk to the driver circuit than it ever was to an induction motor's windings.

If the fan is ever run for long stretches at the very edge of its rated voltage range, keep an eye on it. Running outside the rated band for extended periods is not something most warranties are designed to cover.

What Doesn't Need Doing Anymore

No periodic oiling of bearings the way older fan designs sometimes needed. Most BLDC motors use sealed bearings.
No capacitor replacement, since there isn't one in the circuit to begin with.
No opening the motor housing to "service" it yourself. There's nothing inside meant to be user-adjusted, and doing this risks both the electronics and the warranty.

If you're comparing models before you buy rather than maintaining one you already own, the BLDC Ceiling Fan Buying Guide: How to Choose the Right Motor, Sweep Size & Star Rating walks through how to match sweep size and air delivery to a room before you get to installation day at all.
